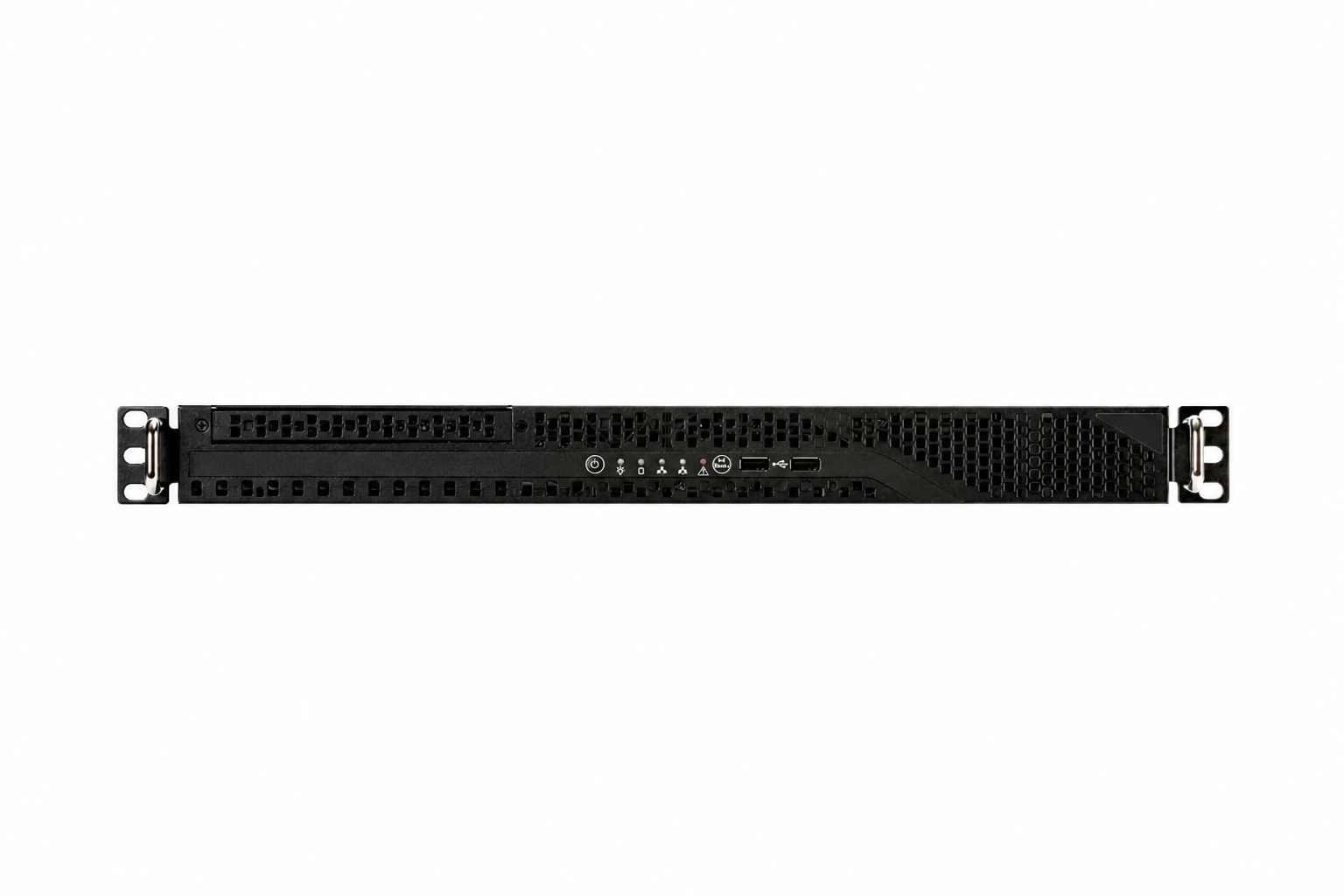

E-Series NVR

Overview

Wavestore E-Series NVRs deliver a professional recording, management and control solution for small to medium size security and video surveillance systems. Typically, at least 32 network cameras can be connected to the NVRs, which are supplied pre-installed with Wavestore’s Video Management Software (VMS). There is also a hybrid option, which allows up to 16 analogue and typically up to 16 IP cameras to be connected simultaneously.

Housed in a rack mountable 1U case, E-Series NVRs can accommodate 2 x 3.5” internal hard drives to provide up to 20TB of storage. This can deliver more than 31 days continuous real-time recording from 32 Full HD cameras**.

The E-Series has a throughput of up to 300Mbits/sec and comes with dual network interfaces to segregate incoming and outgoing network traffic. The ports can be bonded to provide fault-tolerance for perfect performance at all times.

At a glance

Form factor: 1U rackmount

NVR channels: Typically at least 32 (16 for Hybrid version when using analogue channels)

HVR channels: Up to 16 (Hybrid version)

Max. HDDs: 2 x internal

Max. storage: 20TB

Max. IP throughput: 300Mbits/sec

HDD spin down: EcoStore™ ready

Operating System (OS): Linux with VMS embedded

Wavestore VMS: Pre-installed, ready to licence any level

Quick Camera Group setup: Yes

On-board WaveView client operation: For set-up only

Remote WaveView & WaveView Mobile client operation: Yes

Standard warranty: Three-years

Extended warranty: Five-years (optional)

Key features

Pre-installed with Wavestore’s highly secure VMS embedded into its Linux Operating System (OS)

Compatible with all Wavestore VMS levels
Up to 4096bit encryption with comprehensive cyber-security package provided as standard
EcoStore™ ready*
Fully ONVIF conformant and truly open-platform
Compatible with the world’s leading camera brands and video formats, including H.265, H.264, MJPEG, MPEG-4, MxPEG and JPEG2000
